REGYP has numerous screens for hire for various applications and customers.
The screens include Finlay, Erin, Keystrack and Reed.

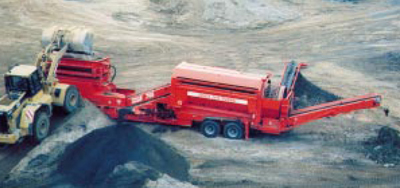

Finlay 798 Trommel Screen (NSW)
The Finlay 798 double skin trommel enables various sizes of product to be screened in one pass (4 with a grizzly) and the trommel screen can handle up to 150 tonne per hr of soil. The large feed hopper can be loaded by an excavator, loader or other conveying equipment. The trommel is powered by a 4 cylinder Deutz and driven hydraulically. The trommel screen can produce the following sizing fractions -10mm, +10 to 35mm, +35 to 150mm and +150mm. With optional 8mm and 6mm outer screens as well.
Finlay 770 Trommel Screen (Sydney NSW)
The Finlay 770 single skin trommel enables various sizes of product to be screened in one pass (3 with a grizzly) and the trommel screen can handle up to 150 tonne per hr of soil. The large feed hopper can be loaded by an excavator, loader or other conveying equipment. The trommel is powered by a 4 cylinder Deutz and driven hydraulically. The trommel screen can produce the following sizing fractions sub 8mm (or sub 40mm) and with a grizzly +150mm.
Finlay 798 Trommel Screen (Brisbane QLD)
The Finlay 798 double skin trommel enables various sizes of product to be screened in one pass (4 with a grizzly) and the trommel screen can handle up to 150 tonne per hr of soil. The large feed hopper can be loaded by an excavator, loader or other conveying equipment. The trommel is powered by a 4 cylinder Deutz and driven hydraulically. The trommel screen can produce the following sizing fractions -18mm, +18 to 35mm, +35 to 150mm and with a grizzly +150mm.
Finlay 798 Trommel Screen (VIC)
The Finlay 798 double skin trommel enables various sizes of product to be screened in one pass (4 with a grizzly) and the trommel screen can handle up to 150 tonne per hr of soil. The large feed hopper can be loaded by an excavator, loader or other conveying equipment. The trommel is powered by a 4 cylinder Deutz and driven hydraulically. The trommel screen can produce the following sizing fractions -10mm, +10 to 31mm, +31 to 150mm and +150mm. With optional 5, 6, 8mm and 18mm outer screens as well.
Keestrack Frontier (Brisbane QLD)
Tracked two deck vibratory screen machine with apron feeder and 7m3 hopper. Capable of screening up to 3 fractions in one pass. Various screen sizes available 3, 6, 14, 40 and 70 mm.

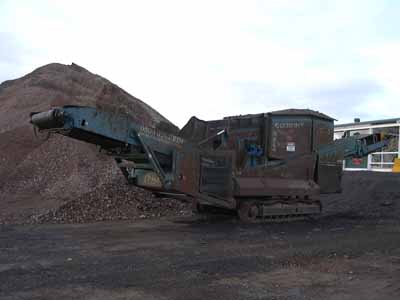

Erin 165 Finger Screen (VIC)
Erin Finger Screen is powered by a 4-Cylinder Perkins Diesel engine.
Screenbox is 16’ x 5’ with heavy duty Cascade Grizzly fingers on the top deck. The angle of the Grizzly and Cascade fingers can be adjusted independently.The two conveyors (fines and overs) are each 1.5m wide and and 4.6m long, with a maximum stockpile height of 5.2m. Unit is great to screen woodwaste, soil, C&D waste and gypsum. It is currently set-up for 60+mm,

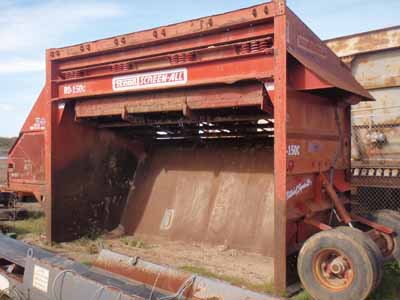

Reed RD-150 Screen (VIC)
Read Screen – Mobile vibrating grizzly, Model No. RD-150C, 3 cylinder diesel motor, 3.7m long x 2.0m wide vibratory screen. The simple screen is suitable for screening two fractions with both unders and overs being removed via front end loader up to 3.5m wide. It is currently set-up for 100+mm,

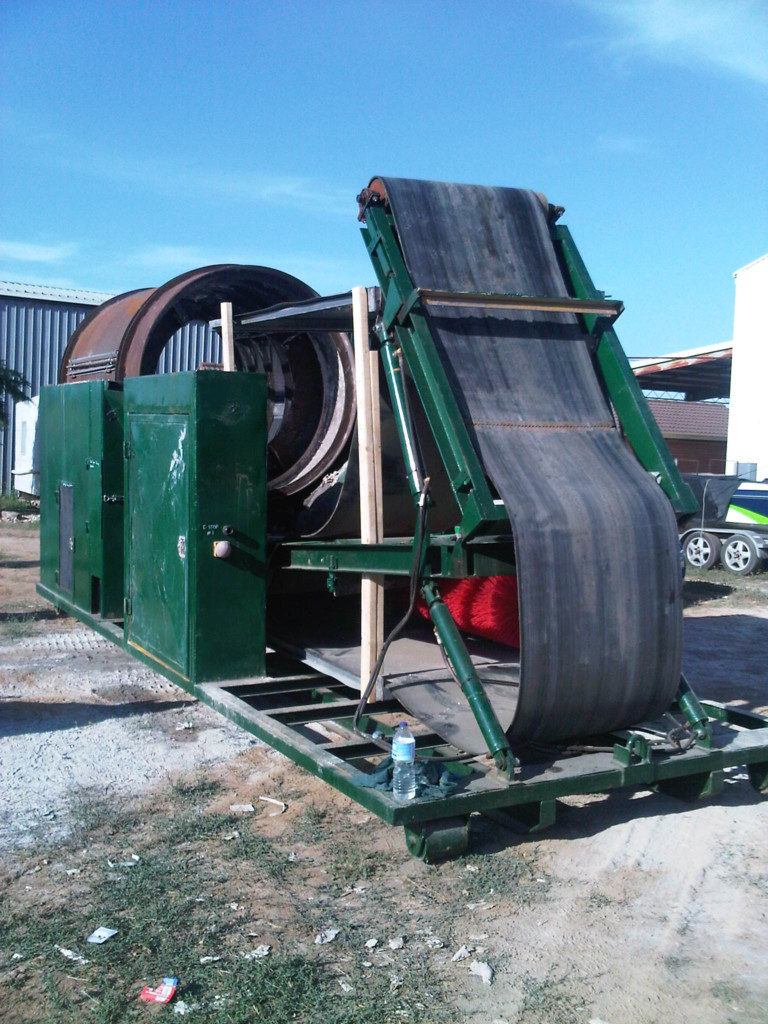

Mobile Trommel Screen TS2418 (NSW)
Mobile heavy duty trommel screen mounted on a hook lift skid. Electric powered drives (415v) with variable speed control (needs genset), Various Screens 3.5, 13 and 30mm square mesh. Brush and cover. Ready for work on soil, sand, waste and compost.
